HIGH PRESSURE PUMP 500 bar FC-21500

HIGH PRESSURE PUMP 500 bar FC-21500

Cleaning: Ideal for use with cars, buses, trains, aircraft, ships, buildings and construction sites.  Pressure Testing , Carwash System , Misting System , Add Humidity , Neutralize Odor

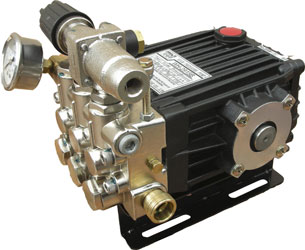

model-WH-2915BWH-2915B

Specification:

* Triplex ceramic plunger
* Die cast aluminum-zinc alloy crankcase
* Forged brass manifold
* Durable seal design

Pumps can be provided alone for use in high-pressure cleaners or car wash facilities. Complete high pressure washer units are also available for professional use, ideal for cleaning machines, vehicles, and buildings.

Application:

* Cleaning: Ideal for use with cars, buses, trains, aircraft, ships, buildings and construction sites.
* Pressure Testing: Testing couplings, hardware, hoses or pipes.
* Carwash System: High-volume pumps are suitable for a wide range of carwash tunnels and multi-bay establishments.
* Misting System: Flash evaporation mist cooling for applications of all sizes.
* Add Humidity: Fine droplet misting for mushroom farms, textile mills and other factories.
* Neutralize Odor: Spray disinfectant or fragrances to improve air quality.WH-2513B

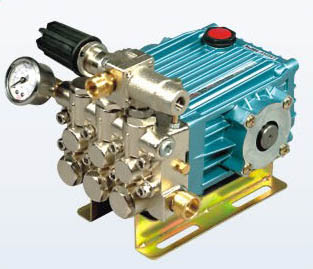

WH-2513B

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-2022B 8.7/6.5 12 24.5 6.5 140 2000 1750 310x300x280 9.5
WH-2513B 5.7/4.3 7 13 3.4 175 2500 1750 310x300x280 9.5
WH-2915B 7.8/5.9 9 15.5 4.0 200 2900 1750 310x300x280 9.5

WS-2024
High Pressure Seawater Pump: WS-2024



Model WS-2024 WS-2022E
Function Sea water desalinization Pressure washer
Working pressure /Bar 140 120
Suction Volume /LPM 24 22
Engine Power /HP N/A 9
Motor Power /HP 6.3 7.5
Revolution /rpm 1750 1750
Dimension /cm 26x24x20 89x70x63
Weight /kgs 14 54

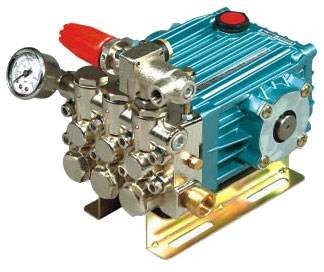

model-wh-2009bWH-2013B

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-2009B 3.3/2.5 5 9 2.4 140 2000 1750 310x300x280 9
WH-2004B 1.7/1.3 3 4.5 1.2 140 2000 1750 310x300x280 9
WH-2011B 3.9/2.9 5 11 2.9 140 2000 1750 310x300x280 9
WH-2012B 4.2/3.2 5 12 3.1 140 2000 1750 310x300x280 9
WH-2013B 4.6/3.5 5.5 13 3.4 140 2000 1750 310x300x280 9

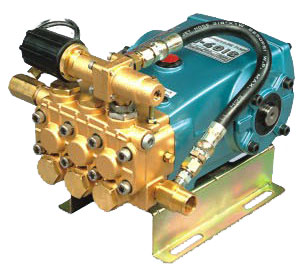

model-wh-3123bWH-3123B

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-3123B 12.7/9.5 15 23 5 220 3100 1750 360x310x330 16.5
WH-3126B 14.3/10.7 16 26 6.8 220 3100 1750 360x310x330 16.5
WH-3520B 12.2/9.2 14 19.5 5.1 250 3500 1750 360x310x330 16.5
WH-4016B 11.6/8.7 15 16.5 4.3 280 4000 1750 360x310x330 16.5

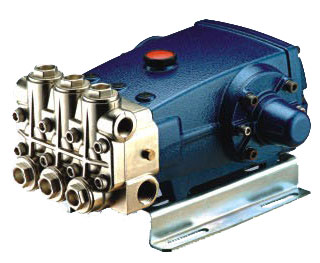

model-wh-2830WH-2830

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-2830 15/11.3 20 30 7.9 200 2800 1750 360x310x330 17
WH-4017 12/9.2 15 17 4.5 280 4000 1750 360x310x330 17
WH-4022 15/11.3 20 21 5.6 280 4000 1750 360x310x330 17

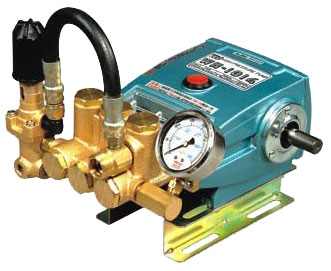

model-wh-1014

WH-1014

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-1014 2.5/1.9 4 14.5 3.8 70 1000 850 385x280x300 11.5

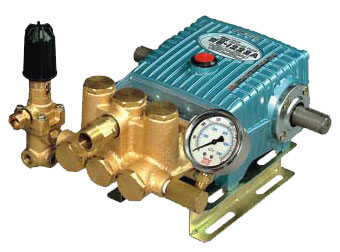

model-wh-1030WH-1030

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-1030 5/3.8 6 30.0 7.9 70 1000 900 385x280x300 16
WH-1223A 5/3.8 6 23.5 6.2 85 1200 800 385x280x300 16

model-wh-1540WH-1540

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-1540 10/7.5 15 43.0 11.3 100 1500 900 360x310x330 25

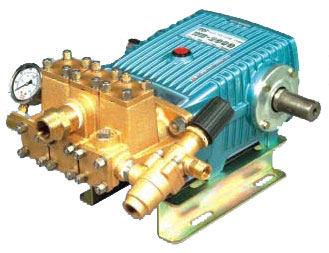

model-wh-2060WH-2060

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-2060 20/15 N/A 59 15.5 140 2000 800 540x415x390 42

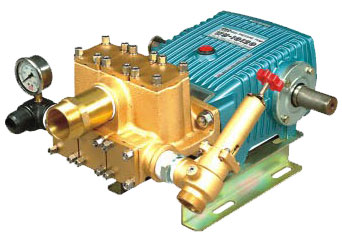

model-wh-10120WH-10120

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-10120 10/15 N/A 125 32.8 70 1000 750 570x450x320 48

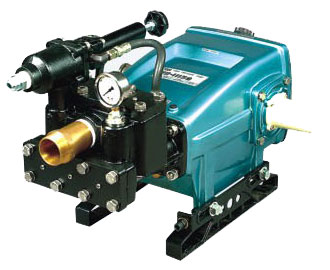

model-wh-11150WH-11150

Required Power
motor/engine
Suction Volume Working Pressure Revolution LxWxH Weight
Model HP/KW HP l/min Gpm Kgf/cm2 p.s.i r.p.m mm Kgs
WH-11150 30/22.5 N/A 150 39.5 80 1100 1200 650x530x480 82
WH-17150 45/33.8 N/A 150 39.5 120 1700 1200 800x530x530 102
